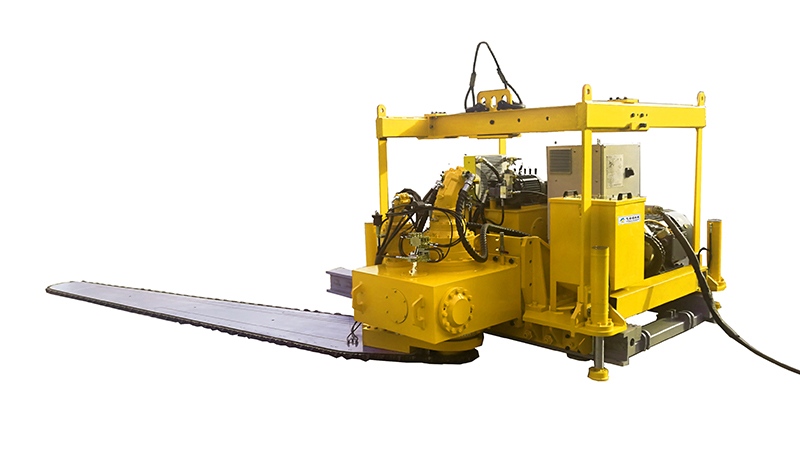

marble chain sawFM-CS2500 /3200/4000/6000/7500
marble chain sawFM-CS2500 /3200/4000/6000/7500
1.Products description
2. Technical data:
Technical data技术参数
Model型号 | HQLBJ-2500 | HQLBJ-3200 | HQLBJ-4000 | HQLBJ-6000 | HQLBJ-7500 |
Power电源 | 53Kw | 53Kw | 53Kw | 53Kw | 53Kw |
input Power and cable电源及电缆 | 380V 50HZ， 3×35 mm²+1×10 mm² | 380V 50HZ， 3×35 mm²+1×10 mm² | 380V 50HZ， 3×35 mm²+1×10 mm² | 380V 50HZ， 3×35 mm²+1×10 mm² | 380V 50HZ， 3×35 mm²+1×10 mm² |
Capacity of hydraulic tank液压油箱的容量 | 200L | 200L | 200L | 200L | 200L |
Lubricating oil capacity润滑油容量 | 25kg | 25kg | 25kg | 25kg | 25kg |
The max. vertical cutting depth最大垂直切割深度 | 2.5m | 3.2m | 4m | 6m | 7.5m |
The maximum horizontal cutting depth最大水平切割深 | 2.5m | 3.2m | 4m | 6m | 7m |
Kerf width切口宽度 | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
Chain rotation Angle链条转动角度 | 360° | 360° | 360° | 360° | 360° |
Cutting chain speed链条切割速度 | 0～1.2m/s | 0～1.2m/s | 0～1.2m/s | 0～1.2m/s | 0～1.2m/s |
Quick positioning speed最快定位速度 | 30m/h | 30m/h | 30m/h | 30m/h | 30m/h |
Cutting speed切割速度 | 0～4 m/h | 0～4 m/h | 0～4m/h | 0～4 m/h | 0～4 m/h |
Water supply and Water pressure供水和水压 | 30L/min,3bar(Cutting normal Marble doesn't need water.） | 30L/min,3bar(Cutting normal Marble doesn't need water.） | 30L/min,3bar(Cutting normal Marble doesn't need water.） | 30L/min,3bar(Cutting normal Marble doesn't need water.） | 30L/min,3bar(Cutting normal Marble doesn't need water.） |
Weight机器重量 | 5700 kg , include one rail(3m) | 7100 kg , include one rail(3m) | 7600 kg , include one rail(3m) | 10800 kg , include one rail(3m) | 11000 kg , include one rail(3m) |
One rail weight(3m)单轨重量 | 970kg | 970kg | 970kg | 970kg | 970kg |
Total weight总重量 | 9040 kg, include three rail | 9040 kg, include three rail | 9040 kg, include three rail | 9040 kg, include three rail | 9040 kg, include three rail |
Machine dimension机器方向 | 3200×1800×1860mm(L×W－H), include one rail(3m) | 3200×2000×1860mm(L×W－H), include one rail(3m) | 3200×2000×1860mm(L×W－H), include one rail(3m) | 4000×2100×2100mm(L×W－H), include one rail(3m) | 4000×2100×2100mm(L×W－H), include one rail(3m) |
Rail(3m) dimension轨道方向 | 3140×1300×290mm(L×W－H) | 3140×1300×290mm(L×W－H) | 3140×1300×290mm(L×W－H) | 3140×1300×290mm(L×W－H) | 3140×1300×290mm(L×W－H) |
3.Machine configuration chart:
No | Name and model | Qty | Note |
1 | FM-CS3200 mainframe | 1 set | Mainframe、platform、hydraulic station、 lubrication pump、electric cabinet and lifting frame assembled together. |
2 | Rail | 3 pcs | Each piece 3 meters |
3 | CS3200 Chain arm | 1set | Length: 4200 mm, include connecting plates |
4 | Cutting chain | 1set | Include segments, assembled. |
5 | Accessories | 1pc | 1)Rail fixed pin , 12 pcs; 2)Attachment tools (spanner、screwdriver、hammer, etc.) , 1set; 3) Spirit level, 1pc; 4) Regulating handle, 2pcs; 5) Wedge liner, 8pcs; 6) Quick-wear part, 1set (Button, fuse, induction switch); 7) Spare parts, 1set (Blade holder、segment、chain pin、chain screw、chain arm screw). |
6 | Documents | 1set | Operation manual, electrical diagram, Packing list |
3.Quality guaranty and service
1） Main components of the quality guaranty is for 1 year, wearing parts and consumable parts warranty is for 3 months.
4. Delivery Time: 30 days after the order is effective.
5.Transportation: One 20’GP, from Xiamen Port China
