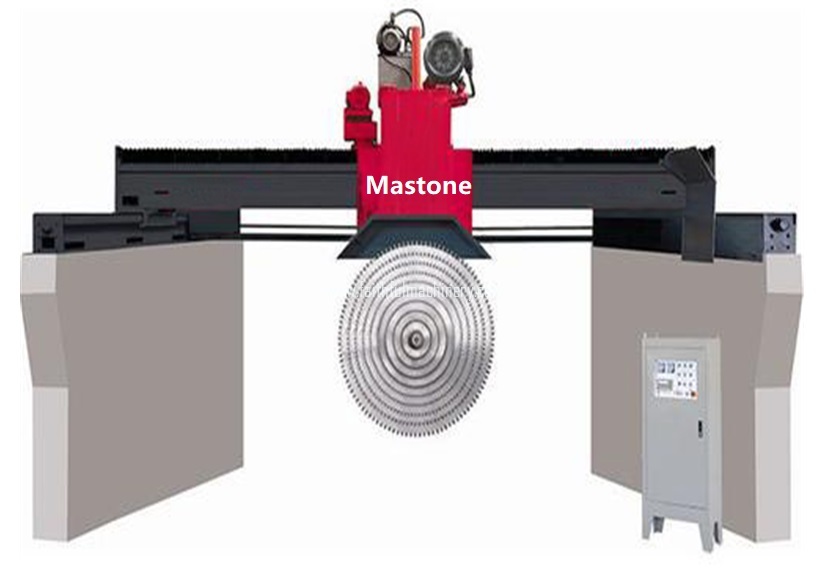

HQDQ 2500 Bridge Type Multi-blade Large-scale Stone Cutting Machine

machine structure: it contain one main Bridge ,cutter head up/down part, main motor, two sides rails beam, rails driving part, electric control cabinet.

machine introduction: This machine is widely used in current chinese modern stone processing factory, Bridge Type and without trolley, so you can put your block on the floor directly, Crossbeam on the left and right rails, slicing by leadscrew, with lower maintance require ,Double Screw slicing system ensure high precision and long use age. Thick and processed well up/down column to make sure cutting precision and long using life, With PLC control, full automatically.

Usage: it will be used for cutting big granite blocks into slabs.

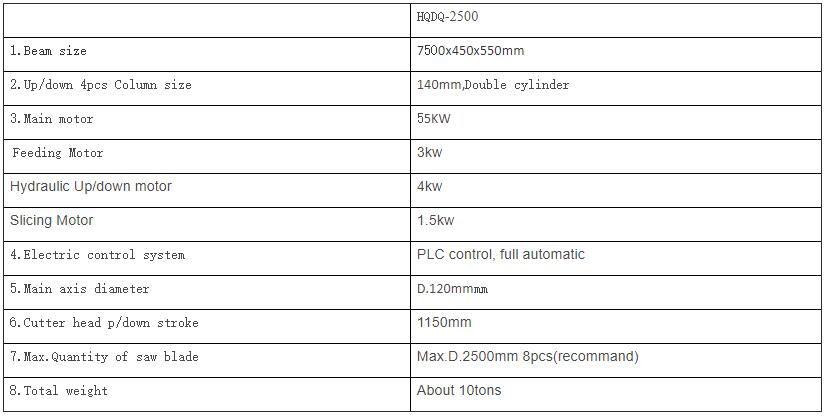

Technical data:
